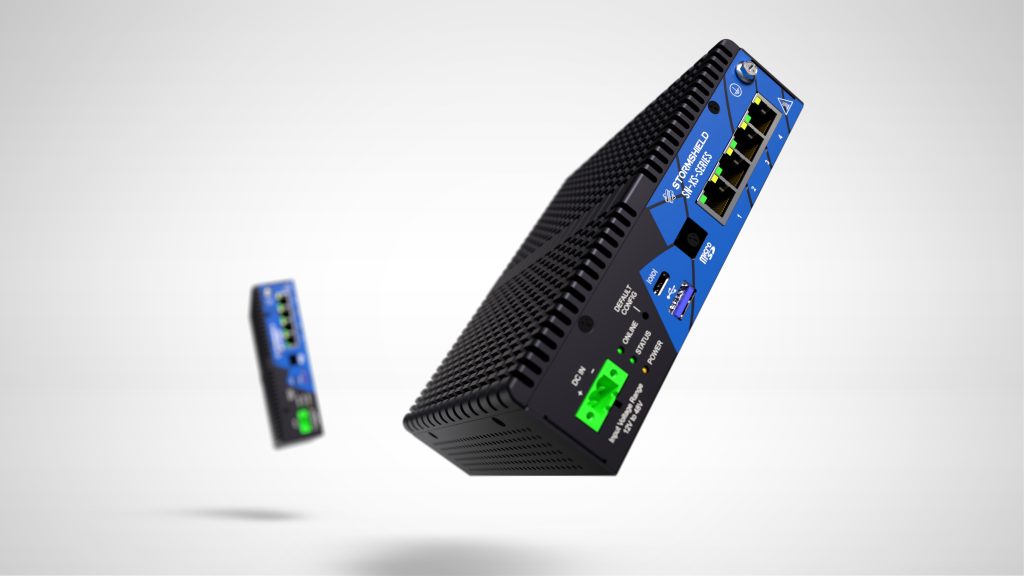

Looking for a cybersecurity product for your industrial environment? The SNi10 industrial firewall features advanced network security functions (antivirus, antispam, IPS, web/URL filtering, IPsec VPN, SSL VPN, etc.). The format of this small firewall means it can be easily deployed in your industrial environments, as close as possible to your PLCs. Finally, its extended operating temperature range makes it a robust piece of equipment for deployment in sensitive locations where air conditioning may be inadequate, such as warehouses or hangars.
Cyber-serenize your business with a security solution that adapts to industrial environments and their security and connectivity needs.
Easy integration
The SNi10 firewall is adapted to your harsh working environments, with its small format (industrial/desktop form factor, DIN-rail), as well as to constrained operational environments thanks to its network segmentation capabilities (bridge, routing, hybrid). It is suitable for all environments, whether IT or OT.
Guaranteed operation
The SNi10 firewall keeps your networks, services and applications running smoothly, thanks to its high availability, industrial power supply (12-48V DC) and extended operating temperature range (-20° to 60°C).
Guaranteed confidentiality
The SNi10 firewall ensures the confidentiality of your exchanges, thanks to its TPM chip. It can be used to set up SSL VPN or IPsec VPN tunnels, depending on your needs, and secures your operations with its filtering and investigation capabilities (Intrusion Prevention System - IPS, Deep Packet Inspection - DPI).
Key elements of the SNi10
industrial form factor
(42 x 165 x 139)
interfaces, power supply and LEDs on front panel
TPM chip
1x USB port
log storage on MicroSD card
4x 2.5G copper interfaces
DIN rail, wall mounting
high availability
industrial power supply (12-48V DC)
MTBF >50 years
fanless
operating temperature -20° to 60°C
CE/FCC/RCM/UKCA/CB
IEC 61000-4-12
IEC 60068-2
IP20 (IEC 60529)
SNi10 demo
Would you like to find out more about our SNi10 industrial firewall before making your decision? Just click on the link and get in touch with our sales team. They'll help you access our demonstration environment and handle the product firmware.
Technical information of the SNi10
Technical specifications
Performance *
Firewall throughput (1518 byte UDP)
3 Gbps
Firewall (IMIX)
2.5 Gbps
IPS throughput (1518 byte UDP)
1 Gbps
Threat Prevention throughput (Antivirus HTTP)
300 Mbps
VPN *
IPSec throughput - AES-GCM
1 Gbps
Max number of IPSec VPN tunnels
50
Number of simultaneous SSL VPN clients
25
Connectivity
2.5GBASE-T copper interfaces
4
Hardware
Height x Width x Depth (mm)
42 x 165 x 139 (46 w/ rubber feet)
Weight
1.16 kg (2.56lbs)
Operational temperature
-20° to 60°C (-4° at 140°F)
Relative humidity, operating (without condensation)
0% at 95% at 60°C (140°F)
Storage temperature
-40° at 85°C (-40° at 185°F)
Relative humidity, storage (without condensation)
0% at 95% at 60°C (140°F)
Certifications
Compliance
CE/FCC/RCM/UKCA/CB/IEC 61000-4-12/IEC 60068-2
Performance is measured in a laboratory and under ideal conditions. Results may vary according to test conditions and software version.
Looking for more technical specifications about our SNi10 firewall? Find the full technical specifications on the SNi10 datasheet, as well as a more complete list of available features.
Trial version and pricing of the SNi10
Combining seamless network integration and advanced security capabilities, the SNi10 industrial firewall adapts to your industrial needs, providing a robust solution with a range of security functions for optimum protection.
Would you like to test the firmware of our SNi10 industrial firewall? For a project, a POC, an appointment or any other request, our teams are at your disposal.
Form factor
Desktop
Extended temperature
range
All-in-one
equipement
Optimal level
of confidentiality
Associated services to the SNi10
Stormshield supports you step by step, according to your cybersecurity needs and maturity level.
Documentation
Access all SNi10 technical documentation, including installation guides, user guides, technical notes and release notes.
Firmware
Having the latest firmware version ensures you're up to date in terms of new features and patches. Some major releases also deliver performance enhancements for the SNi10 firewall. Explore the latest developments in the new version, including enhanced protection, easier management and new features.
Management tools
Get maximum security and effective protection with our complementary centralised management and log management solutions.
Training
Learn how to integrate, configure and monitor our products with our high-level certification training.
Maintenance
Our service and security packages extend the products’ hardware warranty to provide you with continuous updates for protection systems.
Technical Support
In France and abroad, our technical teams are always close at hand to ensure the security of your software and hardware infrastructure, giving you guaranteed continuity of service.
